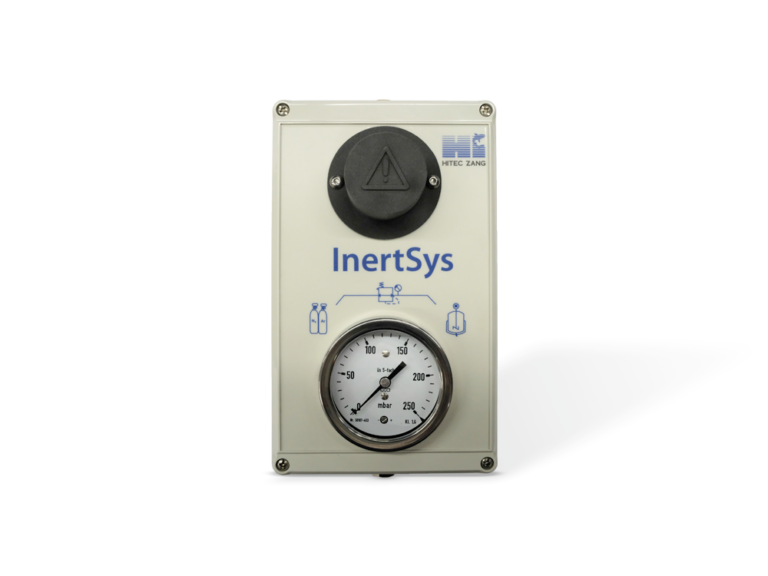

The InertSys is a compact, single-channel inerting system for creating or maintaining a controlled inert gas atmosphere.
It has been specifically developed for laboratory and process applications where safety, reproducibility, and protection against reactions with oxygen or moisture are critical.
With a precisely adjustable pressure range from 30 to 200 mbar, the InertSys enables exact regulation of the inert gas flow, providing maximum control over the protective atmosphere.
The InertSys reduces the inlet pressure of an inert gas (e.g., N₂, Ar) from up to 6 bar to the desired outlet pressure.
The integrated pressure gauge allows for precise reading of the pressure at any time.
A pressure switch monitors the system pressure and signals a potential leak or supply error if the pressure drops below 35 mbar.
For safety, a TÜV-certified overpressure valve is integrated, which opens at > 500 mbar, reliably protecting connected systems.
Learn how InertSys can be optimally integrated into your laboratory or process system. Our experts will assist you in planning your inert gas control system.
| Parameter | Value |
|---|---|
| Outlet pressure | 30 - 200 mbar |
| Inert gas supply pressure | 0.5 – 6 bar |
| Max. inert gas volume flow | 50 l/min at 200 mbar outlet pressure 5 l/min at 30 mbar outlet pressure At 0.5 bar inlet pressure |
| Internal safety valve | Trigger pressure > 500 mbar |
| Pressure feedback | Passive contact, closes at approx. 35 mbar outlet pressure |
| Inert gas connection | G 1/4" (Inlet/Outlet) |
| Inert gas temperature range | 10 - 40 °C |
| Protection class | IP20 |
| Ambient temperature | 0 – 45 °C |
| Dimensions (L x W x H) | 200 × 120 × 80 mm |
| Weight | 1.2 kg |
